AC 110V 220V COB LED Strip Flexible Neon Light Bar IP67 Driverless High Bright 5m 10m 20m 30m 50m FOB COB Linear Tape LED CRI 90
AC 110V 220V COB LED Strip Flexible Neon Light Bar IP67 Driverless High Bright 5m 10m 20m 30m 50m FOB COB Linear Tape LED CRI 90
Couldn't load pickup availability
SPECIFICATIONS
Application: outdoor decoration lighting, car lights...
Average Life (hrs): 50000
Certification: ce,FCC,ROHS,CE,RoHs
Color Temp(K): 3000K, 4000K, 6500K
Feature 1: Super bright
Feature 2: Real high voltage led strip
Feature 3: Coated with high quality silicone tube
High-concerned chemical: None
Is Batteries Included: No
Is Smart Device: No
Item Type: Strip
LED Strip Width: 12.5mm
LEDs Number/M: COB 480 LEDs
LEDs quantity: 480 LEDs/ meter
Lighting colors: Warm/ Natural/ Cold white
Luminous Flux: 2000-82000
Model Number: FOB-480-220V
Nominal Voltage: 220V
Occasion: Living room
Power Consumption (W/m): 11.52W/m
Power Generation: Always On
Power Source: AC
Product name: 110V / 220V FOB COB Strip
RA: >90
Specifications (light beads / m): 480
Strip type: Round 2-wire
Voltage: 220 V
Waterproof: Yes
Waterproof grade: IP67
Working voltage: AC 220V



COB Strip Parameters
LED Chip Brand: Sanan
Length: 0.5m ~ 50m
Width: 10mm(PCB width), 12~12.5mm(whole strip width including silicone tube)
Working voltage: AC 220V or AC 110V
Power: 15W/ meter (220V), 13W/m (110V)
LEDs quantity: 480pcs/meter (220V)
RA: >90
Luminous flux: 110LM/W
How to cut: 16.67cm/cut (220V), 10cm/cut (110V)
Light Color: warm white, natural white, cold white
Application: Indoor/ outdoor decoration lights
Main Features

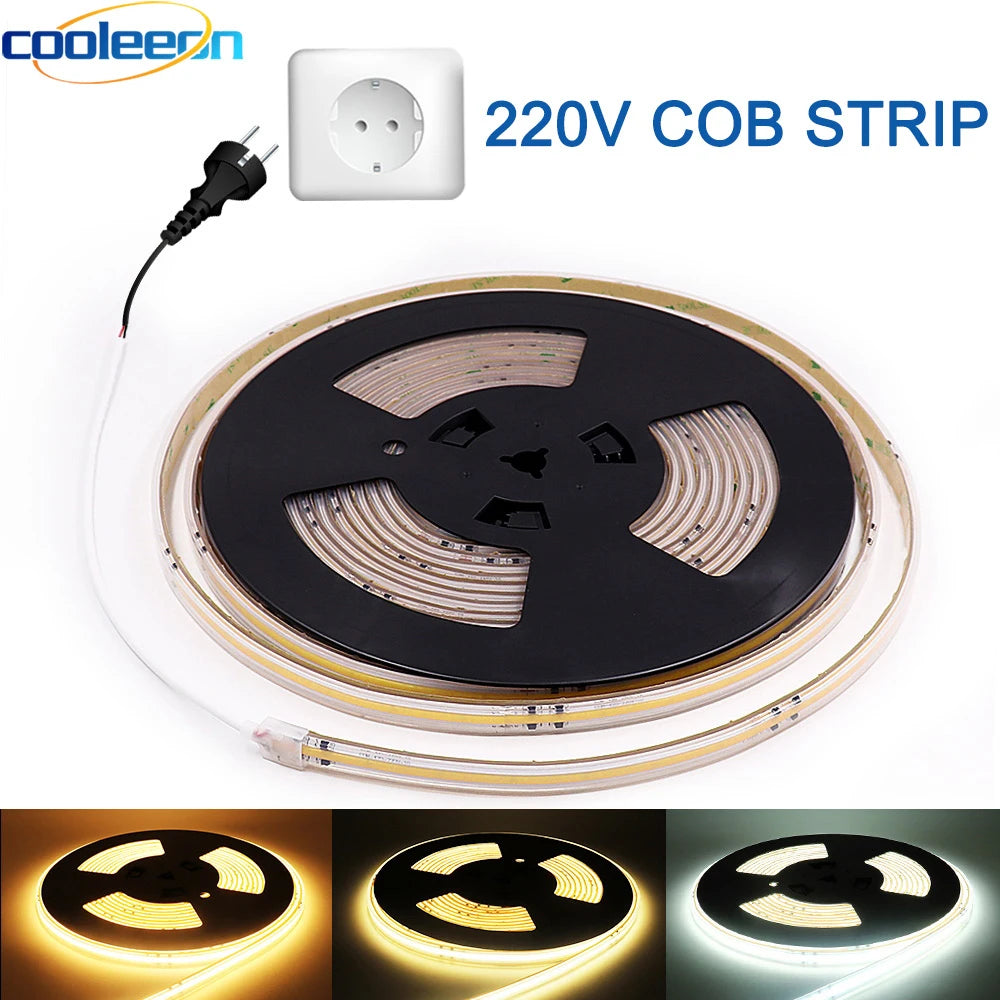

1. AC 110V/230V directly, no need power supply or LED transformer.

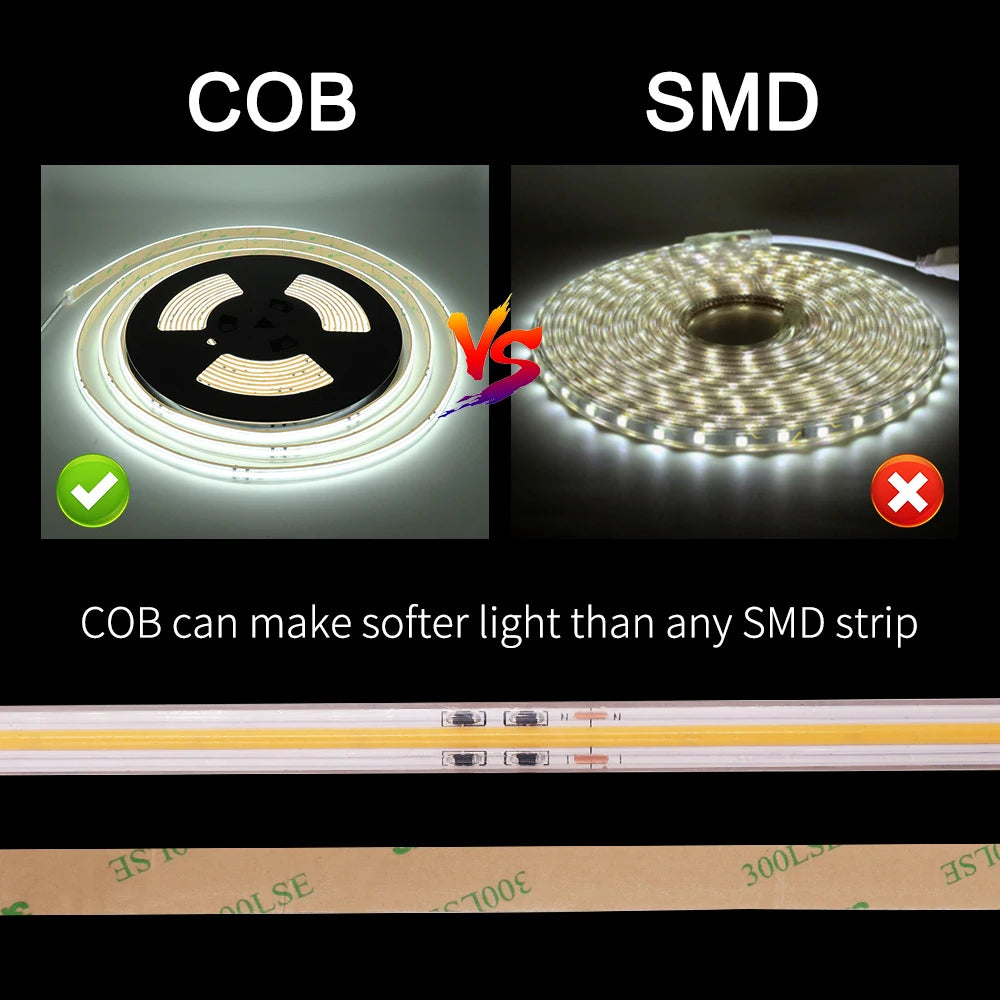

2. High brithness, balance and soft lighting, no dark area, no lighting spot.
3. IP67 waterproof.
4. No voltage drop, one strip can extended to 50 meters.
5. With over-voltage and over-current protection.

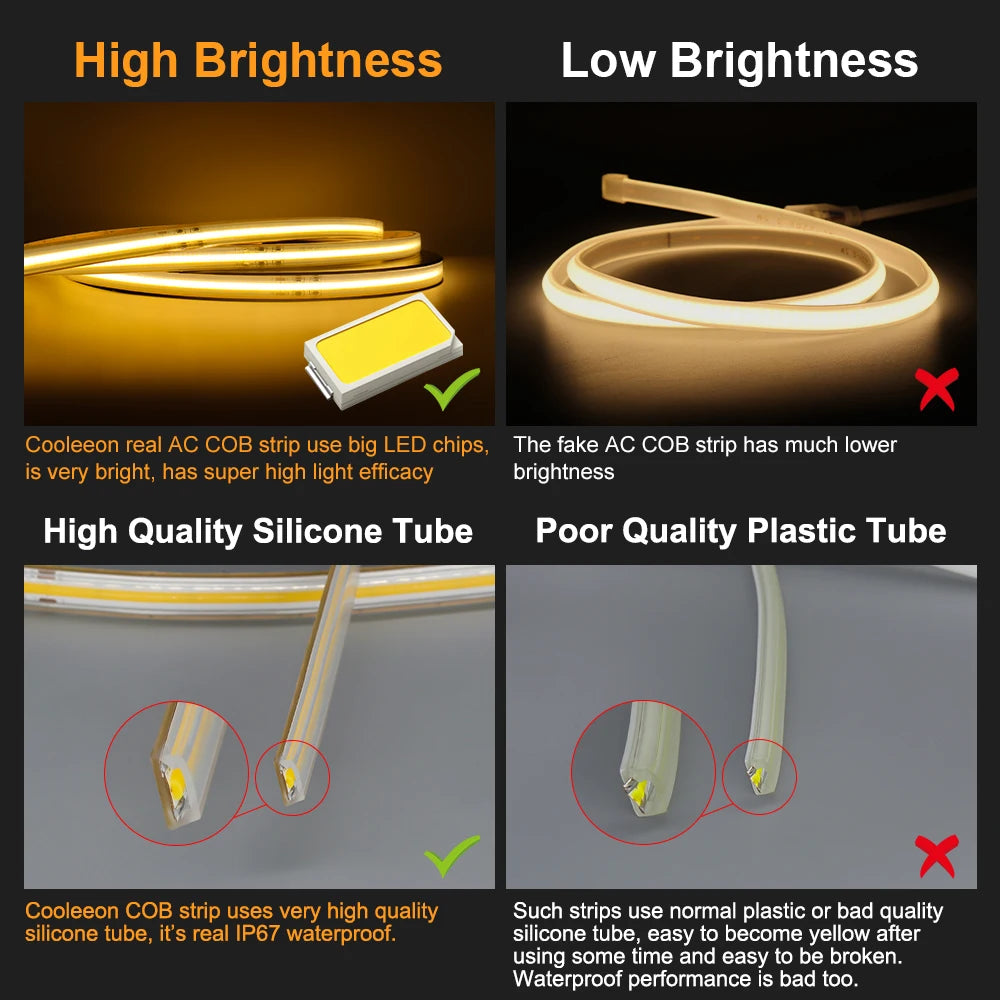

6. Use big size LED chips, with high luminous efficacy and long life-span.
Notice
Because the COB strip is a little heavy, it's better to add some clip to fix the strip when install it.
220V version can work on AC200~240V, 110V version can work on AC90~120V.
Please carefully connect wires and handle the installation, AC power is very dangerous!
