SPECIFICATIONS

High-concerned chemical: None

Material: Aluminum

Model Number: 4861

Package: Yes

Size: 100.0 x 146.0 x 44.0mm

Super Clamp Support Kit

• Durable Construction: Crafted from robust aluminum alloy for long-lasting durability and strength.

• Enhanced Grip: Removable wedge design provides secure clamping on flat surfaces and cylinders, ensuring stability.

• Versatile Compatibility: Equipped with multiple threaded holes and a 15kg load capacity, supporting various equipment attachments.

• Expandable Options: Compatible with different magic arms for versatile expansion and customization.

• Secure and Protective: Integrated pads protect clamped objects and improve grip stability, suitable for a variety of equipment attachments.

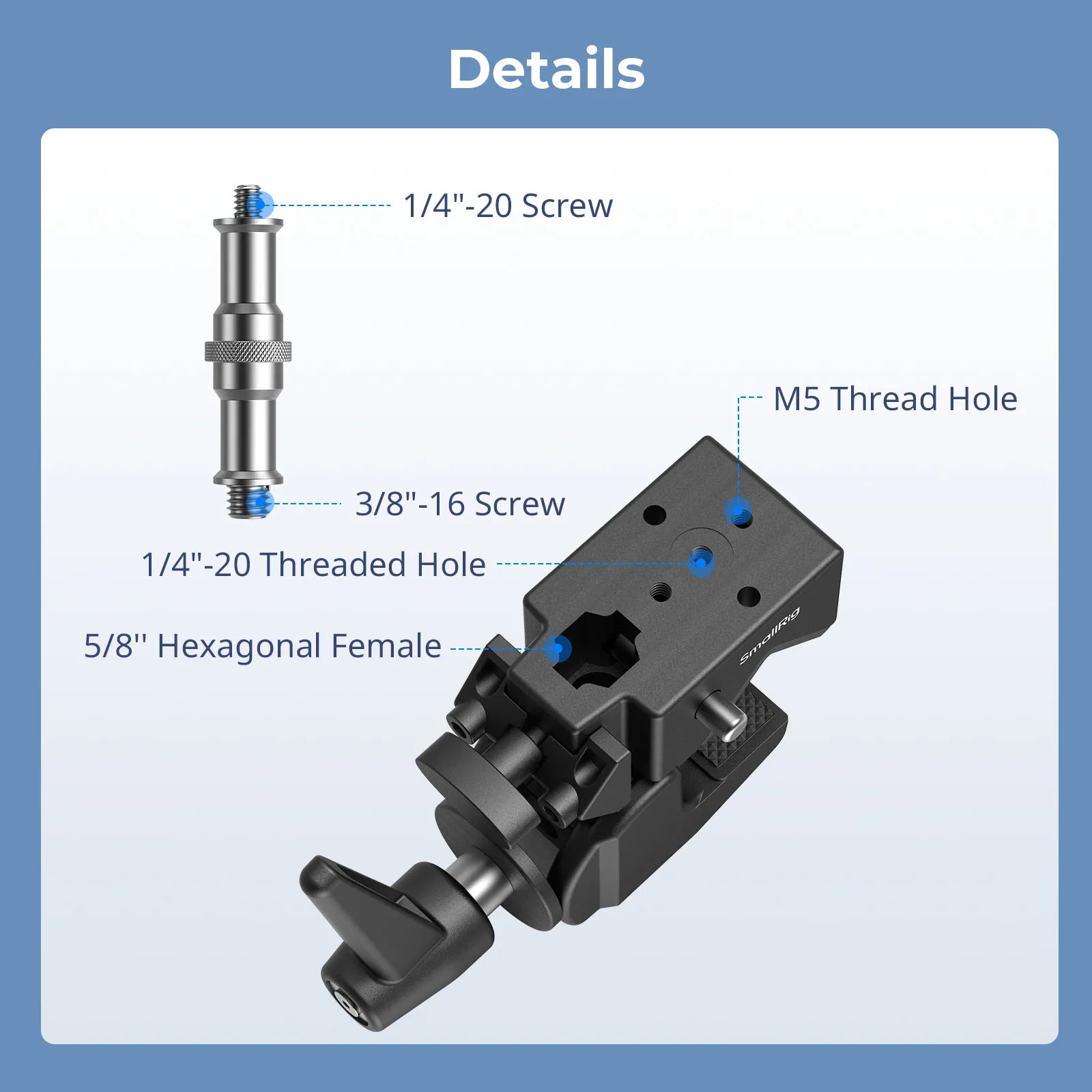

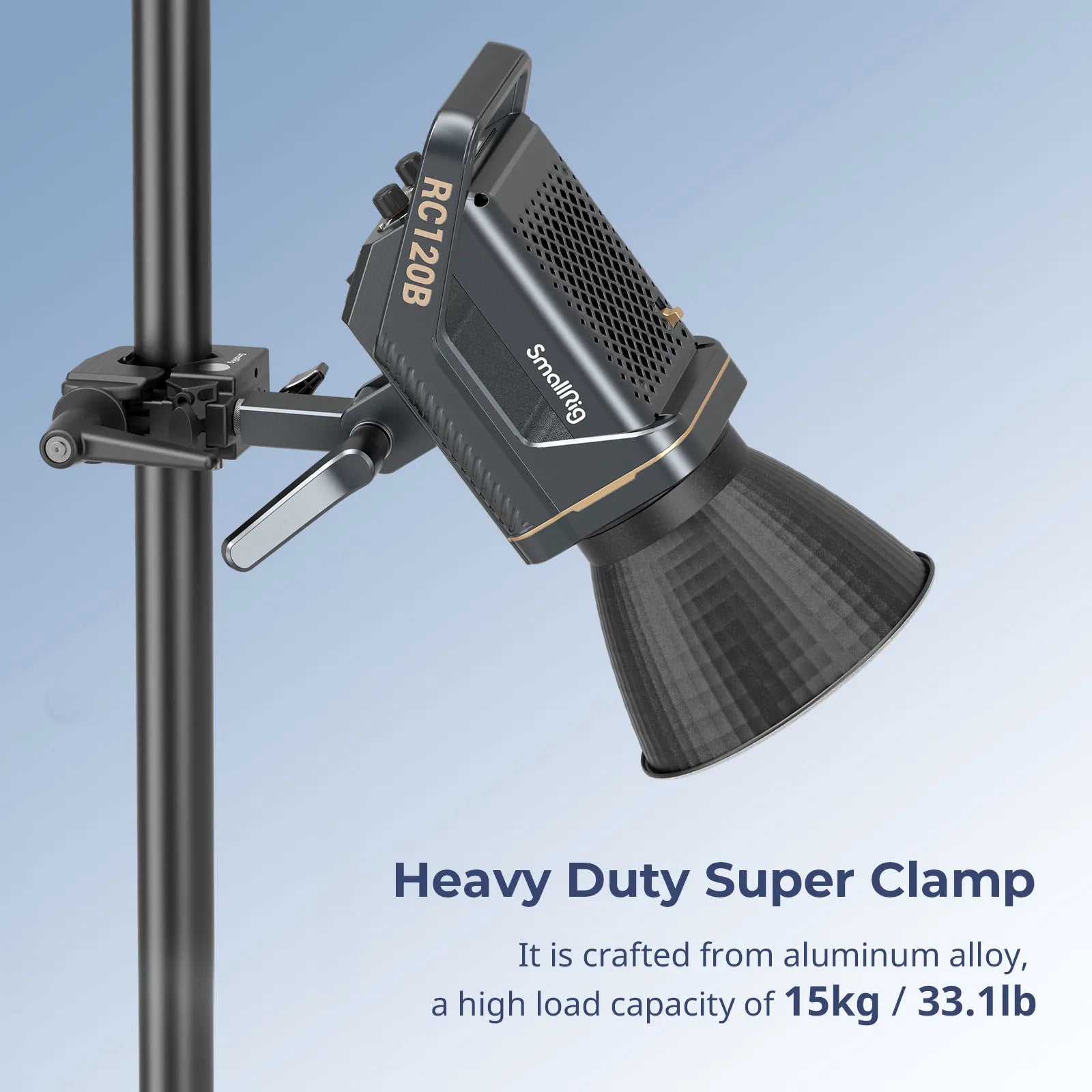

SmallRig Super Clamp Support Kit 4861 is crafted from durable aluminum alloy, ensuring robustness and longevity. Featuring a removable wedge design for enhanced grip on flat surfaces and cylinders, this kit guarantees stable equipment clamping. It comes equipped with a 1/4"-20 top screw, 1/4"-20 threaded hole, and an M5 threaded hole, supporting a load capacity of 15kg / 33.1lb.

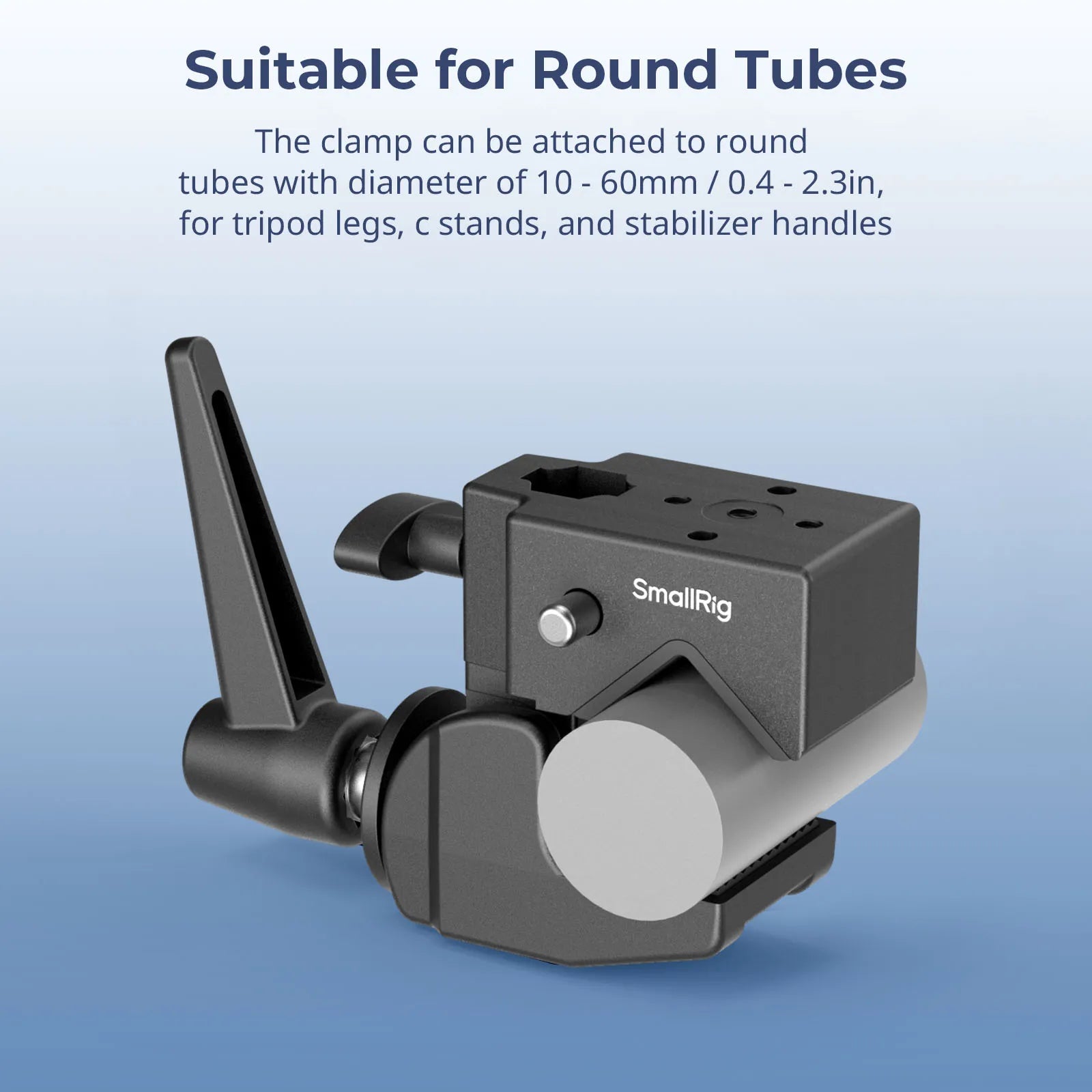

The kit offers versatile expansion with different magic arms (ID 3873, 4899, 4900, and more). The clamp can be attached to round tubes 10 - 60mm / 0.4 - 2.3in diameter and flat objects up to 50mm / 1.9in thick with the removable wedge. Its high adaptability allows for quick attachment of cameras, microphones, monitors, video lights, and other equipment to round tubes, tables, tripod legs, and stabilizer handles.
The robust clamp features integrated pads, ensuring effective protection of the clamped objects while enhancing the stability of the grip.

Compatibility
1.Compatible with cylindrical objects 10 - 60mm (0.4 - 2.3in) in diameter
2.Maximum clamping capability for flat surfaces is up to 35mm (1.9in) in thickness
*Actual data may vary

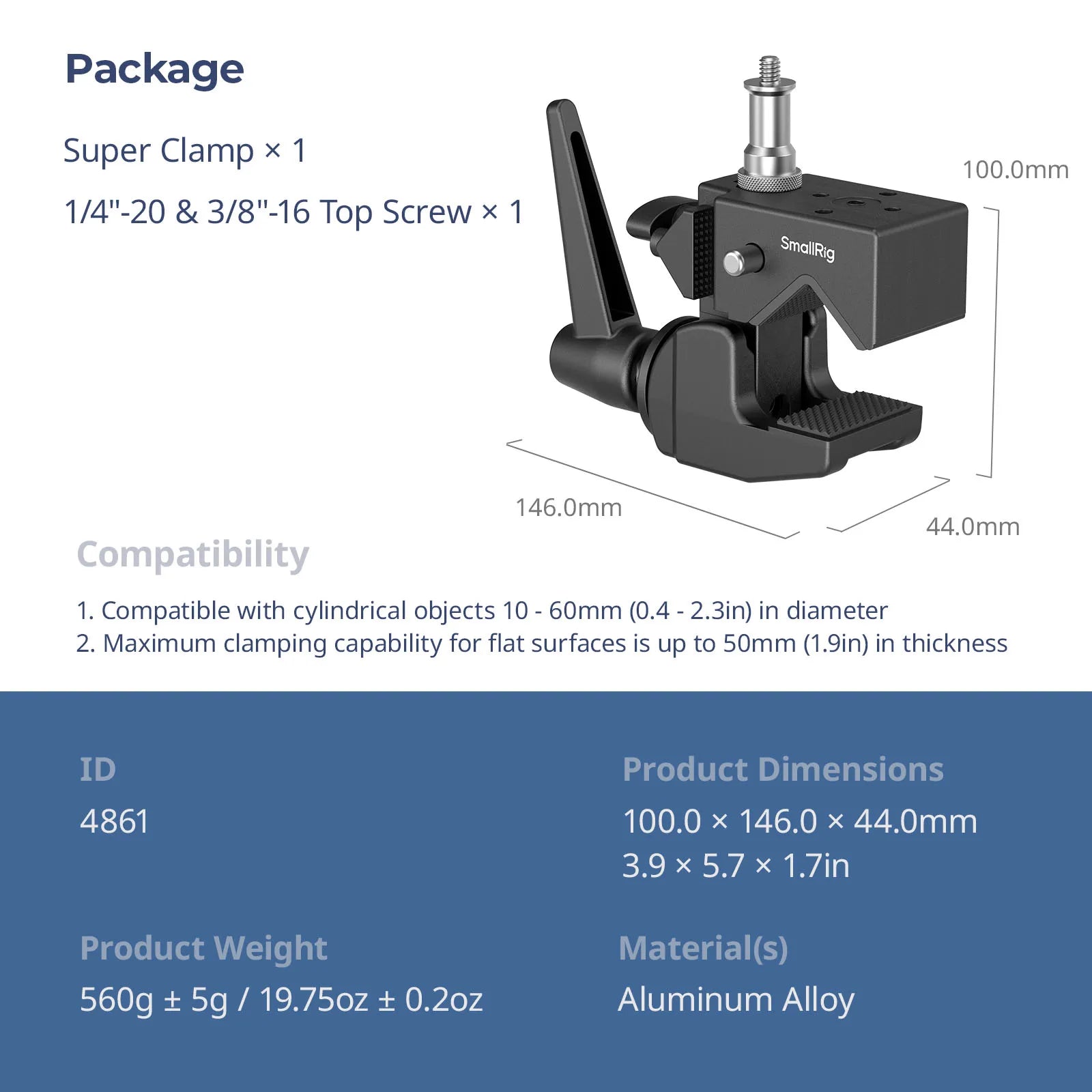

Package
Super Clamp x 1
1/4"-20 & 3/8"-16 Top Screw × 1

Specifications
Product Dimensions: 100.0 x 146.0 x 44.0mm / 3.9 x 5.7 x 1.7in
Package Dimensions:  180.0 x 138.0 x 67.0mm / 7.09 × 5.43 × 2.64 in
Product Weight: 560g ± 5g / 19.75oz ± 0.2oz
Package Weight: 657g ± 5g / 23.17oz ± 0.2oz
Material(s): Aluminum Alloy
